Product Overview

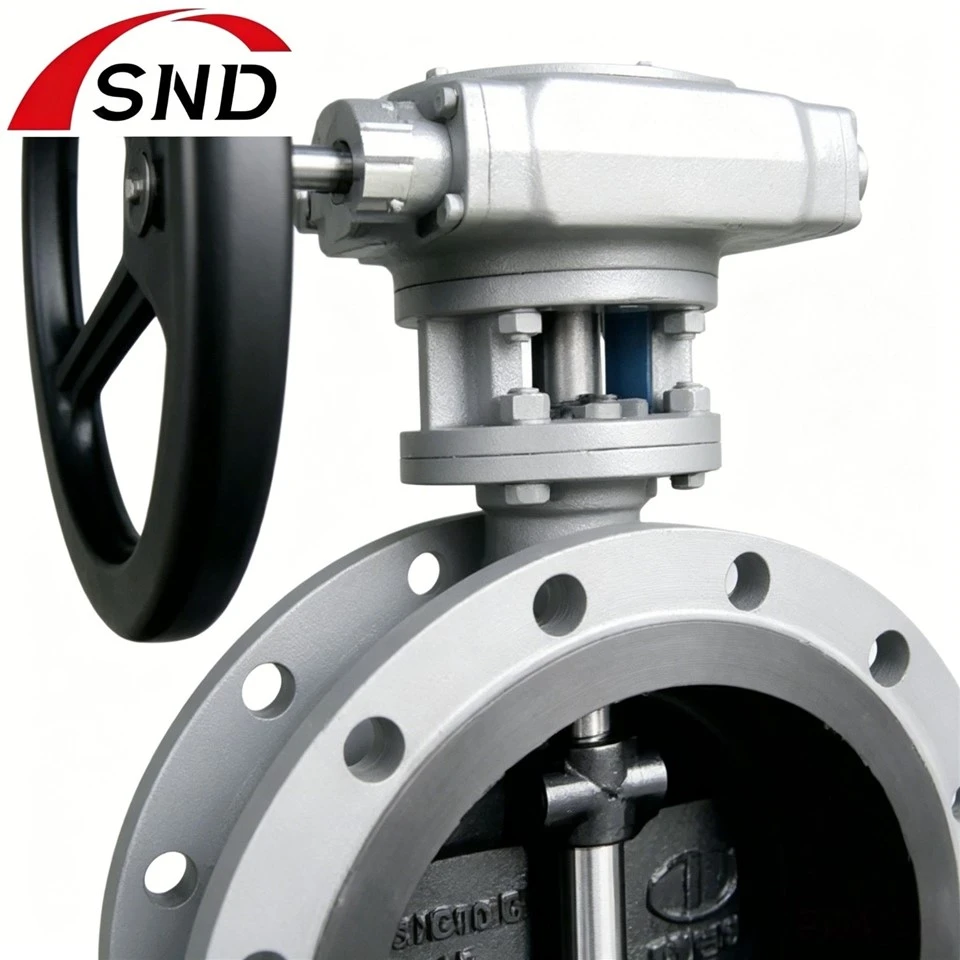

This SND double flange concentric butterfly valve adopts worm gear handwheel operation structure. The valve body is made of high-quality ductile iron, fitted with full rubber lining seat, featuring reliable bi-directional sealing, low operating torque and compact structure. The concentric disc design guarantees stable flow regulation and shut-off performance. It is widely used for opening, closing and regulating fluid flow in water supply & drainage, HVAC, fire protection, sewage treatment and general industrial pipelines. The worm gear reducer can easily realize manual operation, with visual position indicator. We also support customization of electric, pneumatic actuators for automatic control.
Key Features
Concentric Structure & Full Rubber Liner
Concentric butterfly plate, rubber liner fully covers valve inner cavity, excellent sealing performance, bi-directional tight shut-off, good corrosion resistance for water and neutral media.
01
Worm Gear Handwheel Operation
Gearbox reducer reduces operation torque, easy to open and close; built-in position indicator to display valve opening status clearly.
02
Double Flange Connection
Standard flanged ends, simple installation and disassembly, compatible with standard pipeline flanges.
03
High-Quality Ductile Iron Body
Ductile iron body with high tensile strength, impact resistance, long service life under normal water medium working condition.
04
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Double Flange Concentric Rubber Lined Butterfly Valve |
| Brand | SND |
| Operation Mode | Worm Gear Handwheel (Optional: Electric / Pneumatic Actuator) |
| Design Standard | GB/T 12238, API 609 |
| Flange Standard | GB, ASME B16.5 |
| Size Range | DN50 ~ DN2000 |
| Pressure Class | PN6, PN10, PN16 |
| Valve Body Material | Ductile Iron QT450 |
| Disc Material | Ductile Iron / Stainless Steel |
| Seat Material | EPDM, NBR, Natural Rubber |
| Shaft Material | Stainless Steel 2Cr13 / 304 |
| Working Medium | Clean water, sewage, air, neutral liquid |
| Working Temperature | -10℃ ~ +80℃ (Depends on rubber material) |
| Test Standard | GB/T 13927 Hydrostatic Test |
| Certification | ISO9001, CE |
Application Scenarios
- ✅ Municipal water supply and drainage pipeline
- ✅ Building HVAC & chilled water system
- ✅ Fire protection pipeline network
- ✅ Sewage treatment plant
- ✅ General chemical neutral medium pipeline
- ✅ Power plant circulating water system
Products Description
Q: What is concentric butterfly valve?
A: Concentric butterfly valve means the valve shaft center overlaps with the center of butterfly plate and seat. It is simple in structure, low cost and mainly used for water and non-corrosive medium shut-off and regulation.
Q: What rubber liner options can I choose?
A: EPDM rubber is the standard option for clean water and high temperature resistance; NBR rubber suits oil-containing sewage. Natural rubber is for general clean water service.
Q: Can this butterfly valve be fitted with electric actuator?
A: Yes. The worm gear box can be replaced with electric or pneumatic actuator upon request for remote automatic control and signal feedback.
Q: What pressure rating is available?
A: Standard pressure grades PN6, PN10 and PN16. PN16 is the most popular for municipal water projects.
Q: What is your lead time?
A: Standard sizes in stock can be shipped within 7-15 working days. Large diameter or customized models take 25~40 working days.
