Product Overview

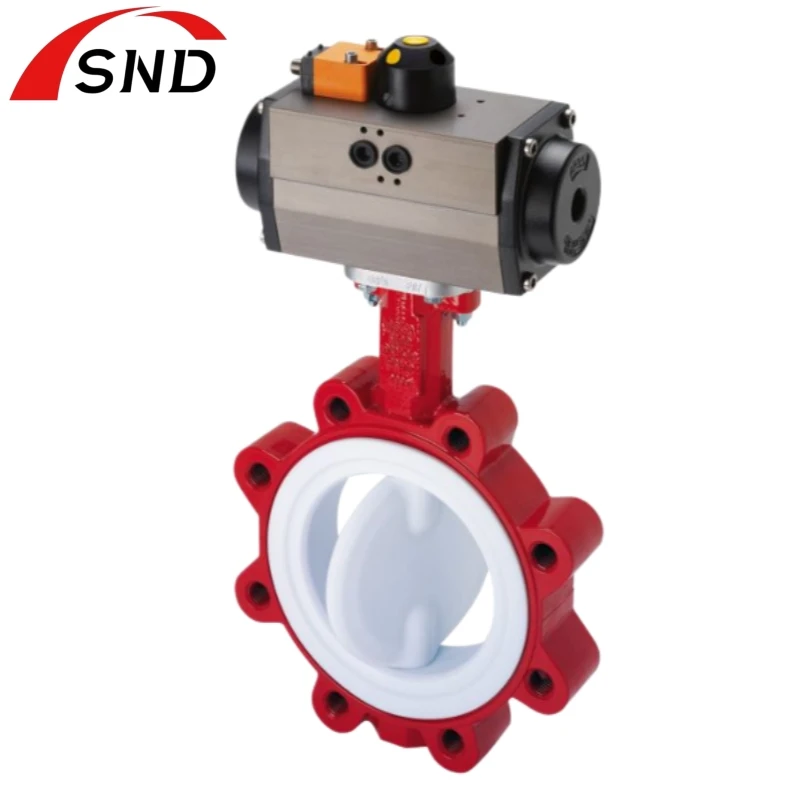

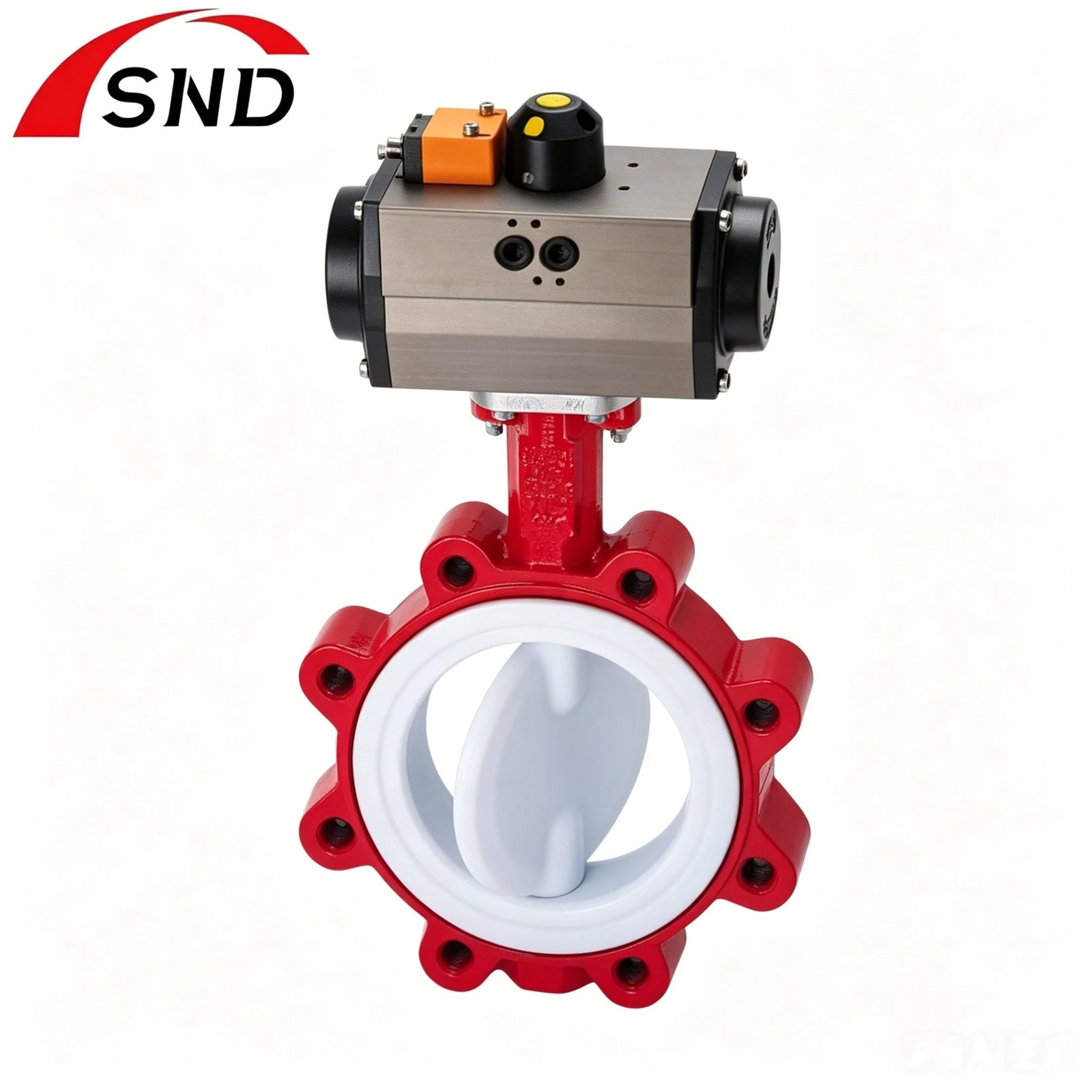

This pneumatic lug style PTFE lined butterfly valve combines heavy-duty lug cast iron body, full PTFE liner, PTFE coated disc and double-acting pneumatic actuator. It delivers reliable shut-off and flow regulation for highly corrosive liquid, acid, alkali and chemical medium.
The lug structure allows end-user to install the valve between flanges, and it can maintain pressure sealing even when one side flange is removed for maintenance. The complete PTFE lining isolates the valve body from aggressive chemicals, protecting the housing against corrosion and extending service life significantly. Equipped with a pneumatic actuator with limit switch, it supports automatic remote on/off control for industrial pipeline systems.
Key Features
Full PTFE lining & PTFE coated disc, outstanding resistance to acids, alkalis and most corrosive chemicals
Lug-type body design, compatible with bi-directional sealing, convenient for pipeline maintenance
Double acting pneumatic actuator with position indicator & limit switch for status feedback
Bubble tight shut-off, zero leakage under rated working pressure
Wide working temperature range, stable performance for chemical processing
Compact structure, easy installation and low maintenance cost
Multiple size options: DN50 ~ DN600 available, custom specifications supported
Technical Specifications
| Item | Parameter |
|---|---|
| Product Name | Pneumatic Lug Type PTFE Lined Butterfly Valve |
| Body Material | Cast Iron / Ductile Iron |
| Liner Material | PTFE (Teflon) |
| Disc Material | Carbon Steel / Stainless Steel with PTFE coating |
| Actuator | Pneumatic Double Acting Actuator |
| Connection Type | Lug Type |
| Seal Type | PTFE Soft Seal |
| Working Pressure | PN10 / PN16 |
| Medium | Acid, alkali, corrosive chemical liquid |
| Working Temperature | -20℃ ~ 180℃ |
| Operation Mode | Pneumatic automatic control |
Application Fields
Chemical industry, acid & alkali treatment plants
01
Wastewater & sewage corrosive fluid treatment
02
Pharmaceutical production pipelines
03
Mining and mineral processing
04
FAQ
Q: What media can this PTFE lined butterfly valve handle?
A: It works for most acids, alkalis and strong corrosive chemical liquids. Not suitable for molten alkali metal and elemental fluorine.
Q: What is the advantage of lug type compared with wafer butterfly valve?
A: Lug type valve can stay fixed on one flange when the opposite pipeline flange is disassembled, ideal for pipeline maintenance and emergency isolation.
Q: Can you supply different pneumatic actuator options?
A: Yes, we provide double-acting and spring return (single acting) pneumatic actuators as requested. Limit switch, solenoid valve can be assembled optionally.
Q: Can I get custom sizes?
A: Custom dimensions and special pressure grades are available, send your technical drawing for quotation.
Q: What is your delivery lead time?
A: Standard models 2-3 weeks, custom valves will be confirmed upon your requirements.
