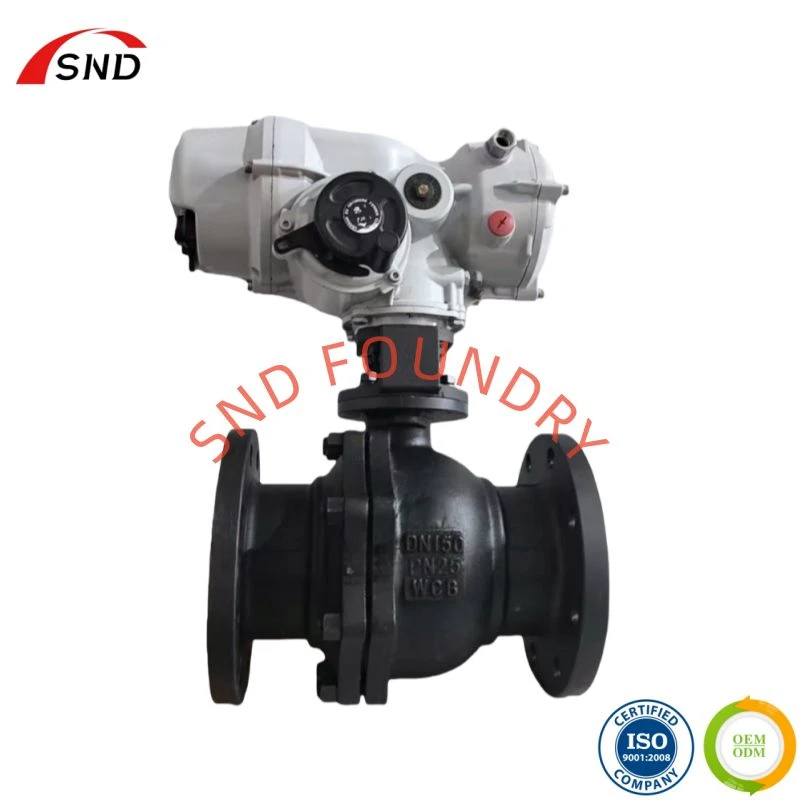

Electric hard‑seated ball valves are electrically actuated 90‑degree rotary ball valve assemblies, composed of an electric actuator (for switching or modulating control) and a ball valve main body (for fluid shut‑off and flow modulation). Driven by motor power, the ball core executes rotational motion to realise medium cut‑off, opening and flow‑rate adjustment. Flanged ends are adopted for piping connection. Featuring metal‑to‑metal sealing architecture as its core component, this series is engineered for rigorous operating scenarios characterised by high temperature, elevated pressure, heavy abrasion and intense corrosive media.
Parameters
|
Valve body material |
WCB/CF8 |
|
Applicable media |
Oil,Gas,Water |
|
Connection |
Flange |
|
Power |
Electric |
|
Sealing Type |
Hard seal |
|
Warranty period |
12 months |
|
Certificate |
CE ,IS09001 ,IS014001,IS045001 |
Advantages
Automation
Supports remote and intelligent operation with full compatibility with PLC and DCS industrial control systems, drastically reducing on-site manpower input.
Fast Response
Full switching cycle finishes within 3‑5 seconds; certain adjustable variants deliver high‑precision flow modulation capability.
Long Lifespan
Sealing contact surfaces feature outstanding anti‑erosion performance. The hard‑sealing configuration delivers a service lifespan exceeding 10 years.
Safety
Integrated with anti-static and anti-ejection stem structures, the valve ensures stable and safe operation under complex working conditions. Select models are fitted with explosion-proof electric actuators for hazardous industrial scenarios.
Features
Compact structure
Fewer parts, smaller size, and lighter weight;
Simple operation
Fully open/close with just a 90° rotation;
Reliable sealing
Soft seals achieve zero leakage, while hard seals are resistant to high temperatures;
Good flowability
Low flow resistance, allowing for almost no loss of medium flow.
Application Scenarios
High-Temperature Media Scenarios
Power Industry (Thermal & Nuclear) Serves as cut-off and modulating equipment for main steam pipelines and reheat steam circulation pipelines in thermal and nuclear power generation systems.
Metallurgical Industry Applicable to high-temperature flue gas and slag conveying pipelines for blast furnace hot stoves and steelmaking converter process systems.
Chemical Industry Ideal for medium delivery including high-temperature oil & gas and molten salt within high-temperature reactor operational processes.
High-Pressure/Ultra-High-Pressure Pipelines
Long‑Distance Oil & Gas Transmission Pipelines Responsible for main‑line shut‑off and distribution station modulating control for high‑pressure crude oil and natural gas transmission networks.
Hydraulic Industrial Systems Realizes cut‑off duties for high‑pressure hydraulic oil media, widely deployed within hydraulic circuits of mining apparatus and heavy‑duty mechanical installations.
Coal‑Chemical Sector Suited for process piping inside high‑pressure coal gasification process units.
High-Abrasion/Particulate Media Scenarios
Mining Industry Suitable for transportation of particle‑laden media including mine slurry and slag mixtures.
Cement Industry Applied to pneumatic conveying pipelines for cement clinker and fly ash delivery systems.
Paper Industry Adaptable for process pipelines carrying fiber‑rich and impurity‑containing media such as pulp and black liquor.
Highly Corrosive (High Temperature + Corrosion) Scenarios
Chemical Industry Capable of conveying high-temperature acidic gaseous media, including sulfuric acid and hydrochloric acid vapors, as well as high-corrosive strong alkaline solutions.
Marine Engineering Applicable to high-temperature seawater and concentrated brine process pipelines for seawater desalination facilities, with customized stainless steel hard-seal configurations available for marine anti-corrosion demands.
Manufacturing Process
Valve Body Machining
Material (carbon steel / stainless steel) casting / forging → Machining (turning, drilling) → Surface treatment (rust prevention, polishing);
Ball/Seat Assembly
Ball grinding + valve seat (soft/hard seal) installation → Sealing performance testing;
Actuator Assembly
Electric actuator (motor + reducer) assembly → Direct connection to the ball valve body → Control logic debugging;
Overall Inspection
Pressure resistance test, leakage test, operating life test → Factory quality inspection.
Maintenance and Care
Daily Inspection
Regularly check the actuator power supply and seals for leaks, and ensure the actuator operates smoothly.
01
Lubrication Maintenance
Add lubricating oil to the valve stem and actuator gears every 3-6 months.
02
Seal Replacement
Replace soft seals (PTFE) every 1-2 years; replace hard seals according to wear.
03
Actuator Maintenance
Avoid humid/dusty environments; explosion-proof models require regular testing of their explosion-proof performance.
04
