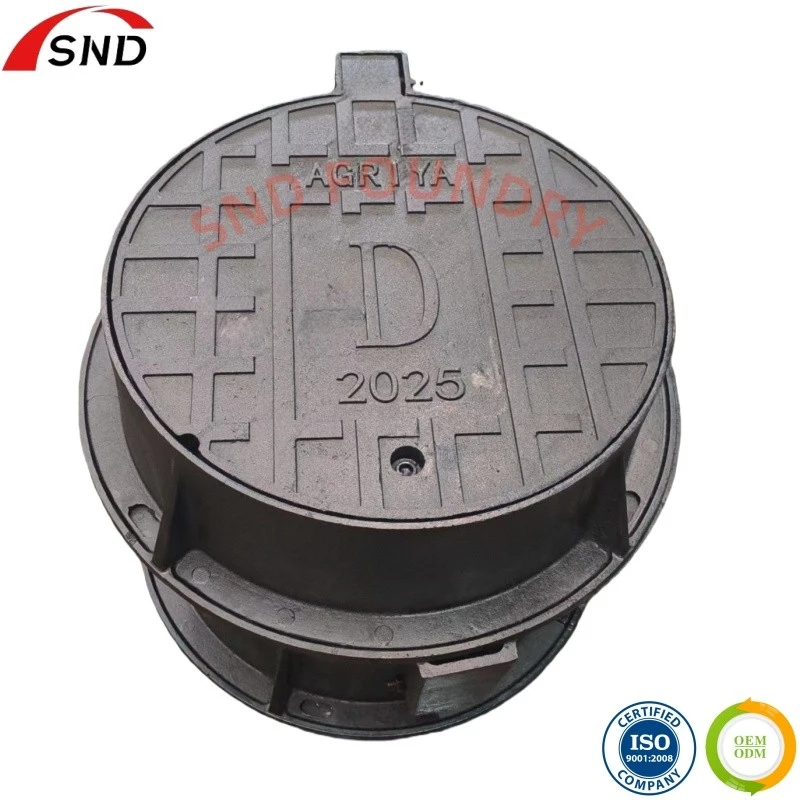

Heavy duty ductile iron manhole cover with hinged is a heavy-duty access cover made of high-quality ductile iron with an integrated hinge, complying with EN 124 D400 standard for ultra-load-bearing and anti-settling. Featuring anti-theft, easy opening/closing, corrosion resistance and durability, it suits heavy-load scenarios like municipal arterial roads and industrial areas. Equipped with innovative intelligent positioning and noise reduction design, this traditional cover combines safety and humanization

Application Scenarios

Heavy duty ductile iron manhole cover with hinged mainly application on:

Municipal Infrastructure

Urban arterial roads, highways, bridges, tunnels, subway stations and other transportation hubs;

Industrial Fields

Petrochemical parks, steel mills, power plants, sewage treatment plants, industrial parks and other heavy-duty operation areas;

Public Facilities

Airport runways and aprons, ports and terminals, large parking lots, logistics parks and other high-frequency heavy-load places;

Special Environments

Coastal areas, mining areas, acid-alkaline corrosion environments and other scenarios with high requirements for cover protection performance.

Product parameters

Place of Origin	Hebei, China	Brand Name	SND
Surface Treatment	Asphalt paint/OEM	Material	EN-GJS-500-7
Product name	Manhole Cover	Process	Automatic lines
Hardness	HBS 170-230	Standard	EN124
Certification	CE	Load Class	D400/E600/F900
Quality Control	100% Inspected	Dimensions	As drawings
Shape	Round/Square/Rectangle/Double/Triangle
Additional Functions	Anti-slip surface patterns. Optional anti-theft locks. Rubber sealing rings (leakproof) Hinge
Customized Service	Drawing design/Pattern/logo/words/coating

Packaging and delivery

Package Solution

Wooden pallet

OEM

Loading Port

Tianjin Port/Qingdao Port/

Delivery time

Within 15 days.

New mold within 45 days.

Production Process

1.Raw material melting: Select high-quality pig iron, scrap steel, melt into molten iron above 1500℃, control composition strictly;
2.Spheroidization & inoculation: Add spheroidizing and inoculating agents to optimize material strength and toughness;
3.Casting forming: Sand casting per EN124 standard, cast at about 1400℃;
4.Post-treatment: Heat treat to relieve stress after cooling, finish machining, spray anti-corrosion coating;
5.Assembly & testing: Install hinges, seals, pass D400 load test for delivery.Heavy duty ductile iron manhole cover with hinged process is efficient and compliant.

Inspection Items

A.Material composition test: Confirm ductile iron meets GGG50/QT500-7 standard, with qualified carbon, silicon, magnesium content;

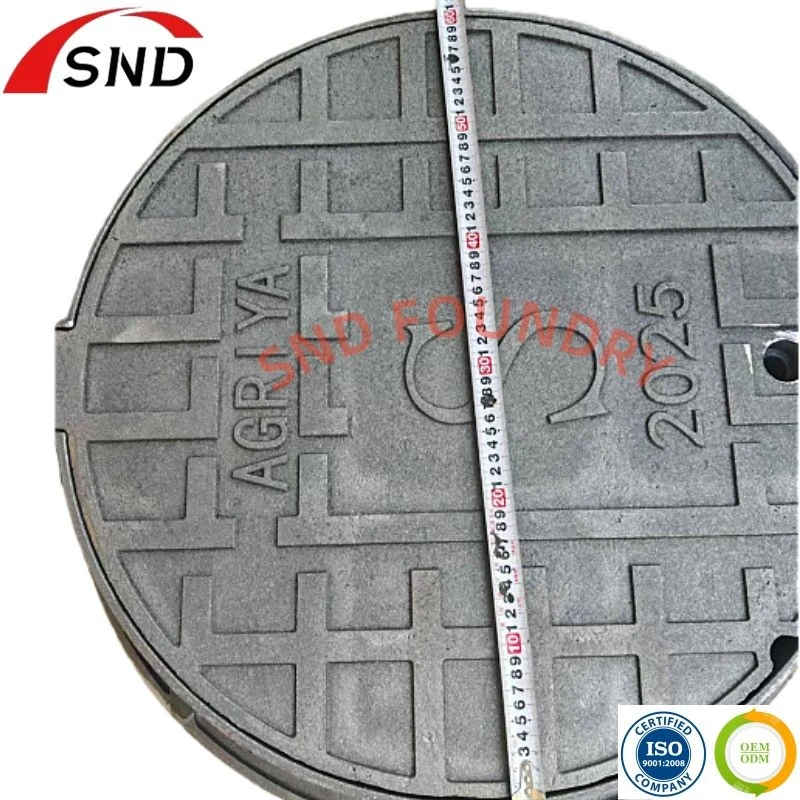

B.Dimensional accuracy test: Measure cover diameter, thickness, frame fit clearance, complying with EN 124 tolerance;
C.Mechanical performance test: Tensile strength ≥500MPa, elongation ≥7%, D400/E600/F900 class load test ;
D.Structural function test: Hinge opening angle (≥110°), locking reliability, seal ring waterproof/dustproof effect;
E.Surface quality test: No cracks, sand holes, etc., anti-corrosion coating adhesion and corrosion resistance;
F.Safety performance test: Anti-settling, anti-bouncing, anti-theft function verification.

FAQ

Q: 1.When could delivery after confirm order?

A: General it is within 15days, if we have the mold in stock.
Within 30-45 days, if we need to make a new mold for you.
Certainly we supply the special fast delivery service if you have the hurry order.

Q: 2.What kind of package solution?

A: Normal is the wooden pallet or wooden case.
We also supply the bulk package free to help clients down the high ship fees.
SND foundry supply the Customized packaging services to help each client demand.

Q: 3.Could we ask a sample?

A: Yes, we can just. Just need your bear the cost advance. After the order confirm we will refund the sample fees.

Q: 4.Can I have my own logo on the product?

A: Yes, SND team supply the customized service to you. Including the pattern, logo, words, coating etc, as long as you have an idea.

Q: 5. Can you produce the products according to my own drawings?

A: Yes, we can. SND FOUNDRY is professional and rich experience on manhole covers.
We have our own design team, lab room, the automatic production lines, shooting core machines, lost foam process, grinding &cleaning workshop, assembly workshop, and full sets inspection machines.
