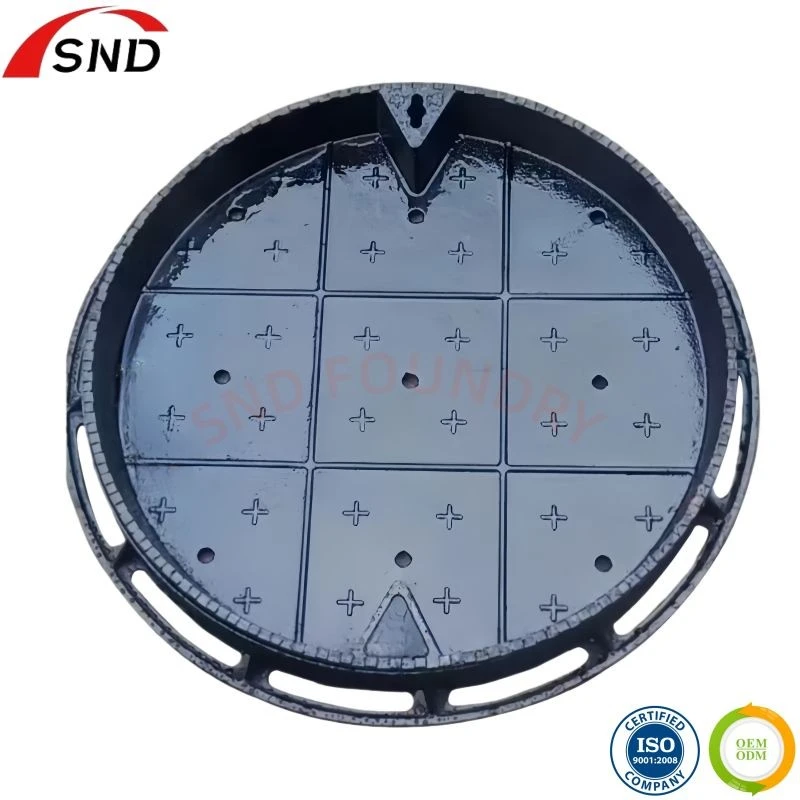

Round Recessed ductile iron access cover

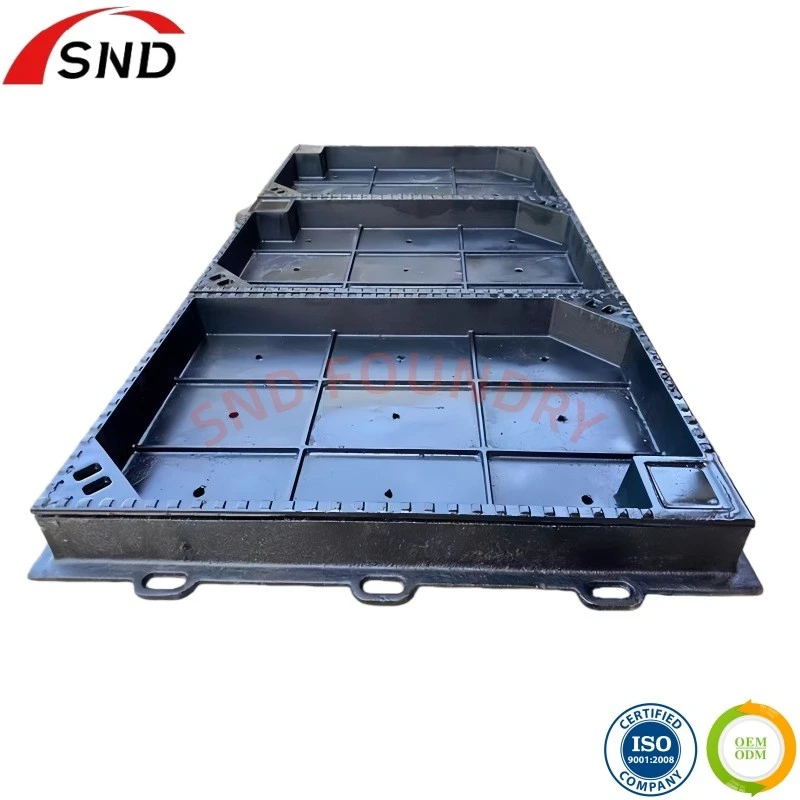

Ductile iron Recessed Covers and Frames are municipal infrastructure components cast from ductile iron. Their core structural feature is that the cover panel can be embedded into the frame groove, allowing the cover surface to be flush with surrounding pavement materials (such as asphalt, concrete, and stone). The product integrates load-bearing protection and landscape adaptation functions, and must be manufactured and inspected in accordance with corresponding national or industry standards (e.g., China's GB/T 23858, European Standard EN 124, American Standard ASTM A536).

Core Advantages of Ductile iron Recessed Covers and Frames

High load-bearing capacity

After nodularization treatment, ductile iron has a tensile strength of ≥420MPa and a yield strength of ≥300MPa, which can meet the full range of load-bearing requirements from A15 to F900 in the EN 124 standard. It is suitable for different load scenarios such as sidewalks, municipal roads, and heavy-duty lanes.

Excellent landscape coordination

The recessed design enables the cover surface to be paved with the same materials as the surrounding area, eliminating the protrusion or depression problems of traditional manhole covers, maintaining the overall aesthetics and flatness of roads and squares, and improving the unity of urban landscapes.

Outstanding durability

Ductile iron has far superior corrosion resistance and impact resistance compared with ordinary gray iron. In harsh environments such as acid-base soil, high temperature and severe cold, its service life can exceed 30 years, and it is not prone to deformation, fracture and other faults.

High safety

The precise interlocking structure of the frame and cover can effectively prevent the cover from shifting and bouncing, reducing noise when rolled over by vehicles; some products can be equipped with anti-theft locking devices to avoid safety hazards caused by cover theft.

Convenient maintenance

The cover has a flexible opening method, which can be quickly opened and closed with special tools, facilitating the inspection and maintenance of underground pipelines (water supply and drainage, gas, communication). The structure is stable and not easy to loosen due to frequent opening and closing.

Product parameters

Place of Origin	Hebei, China	Brand Name	SND
Surface Treatment	Asphalt paint/OEM	Material	Ductile iron
Product name	Manhole Cover	Process	Automatic production line
Hardness	HBS 170-230	Standard	EN124
Certification	CE ISO9001	Load Class	C250/D400/E600
Quality Control	100% Inspected	Dimensions	As drawings
Shape	OEM
Additional Functions	Anti-slip surface patterns. Optional anti-theft locks. Rubber sealing rings (leakproof) Hinge
Customized Service	Drawing design/Pattern/logo/words/coating

Packaging and delivery

Package Solution

Wooden pallet/Steel pallet

OEM

Loading Port

Tianjin Port/Qingdao Port/

Delivery time

Within 15 days.

New mold within 45 days.

Dimensions in stock

Standard	Class	Outside Size	Inner Size	Height	Hinge	Lock
EN124	D400	800X800mm	700X700mm	85mm
EN124	D400	1000X1000mm	900X400mm	85mm
EN124	D400	1200X1200mm	1100X500mm	85mm
EN124	C250	Ф800mm	Ф700mm	85mm
EN124	C250	Ф900mm	700X700mm	85mm

Welcome contact us for more dimensions.

Quality control

1.Material Composition Inspection by Direct reading spectrometer.
2.Dimensional Accuracy Inspection as drawing.
3.Mechanical Performance Inspection by Universal material testing machine.
4.Surface Quality Inspection
5.Load pressure test by Pressure test machine.

Certifications

SND has fully passed the ISO9001 quality management system certification and CE. During the production process, it implements a number of strict detailed standards and conducts full-process quality control. Our company has well-equipped chemical laboratories and physical performance laboratories. A complete set of testing equipment such as Direct Reading Spectrometer, Metallographic Microscope, Hardness Tester, Universal Material Testing Machine and Pressure test machine can be used to effectively control chemical composition and ensure mechanical performance.

What SND advantage?

1.More than 20 years production experience and 10 years export experiences.
2.Accept customized and flexible make follow clients demand., from design, mold, produce, coating, machining, assembly, packing etc.
3.Have the research and innovative spirit, like highly challenging orders.
4.The supporting facilities are complete. 3 sets shooting machine, 3 sets automated production lines, lost foam process, handicraft workshop, automatic paint spraying line and drying workshop, 10 sets grinding work shop, assembly workshop etc.
5.High quality control, like above picture show, we have full inspection equipment.
6.Workers team have rich experiences and high level to deal with export production.

FAQ

Q: 1.What causes settlement or abnormal noise of recessed covers after installation?

A: There are three main causes: ①Uncompacted foundation pit or insufficient concrete strength leading to base settlement; ②Elevation calibration error of frame installation (exceeding ±2mm), forming height difference with surrounding pavement; ③Excessive bite gap between cover and frame, or aging/falling off of sealing ring. Solutions include reinforcing the base, recalibrating elevation, and replacing sealing parts.

Q: 2.What is the service life of such covers, and how often is routine maintenance required?

A: Under standard installation and normal environment, the service life of ductile iron recessed covers can reach 30-50 years; in coastal high-corrosion environments, the service life is not less than 20 years after anti-corrosion treatment such as hot-dip galvanizing. Routine maintenance recommendations: inspect locking/sealing devices quarterly, re-measure elevation and stability annually, and evaluate anti-corrosion layer condition every 3-5 years.

Q: 3.How to match the recess depth of recessed covers with surrounding pavement materials?

A: The recess depth must be consistent with the pavement thickness: ①50-60mm for asphalt pavement; ②60-70mm for stone/brick pavement; ③50-80mm for concrete pavement. A 5-10mm margin can be reserved during customization to ensure flushness with the road surface after paving.

Q: 4.Do the products have anti-theft and anti-fall functions? Can relevant accessories be added?

A: Standard products have a precision interlocking structure to prevent displacement, and two types of accessories can be added: ①Anti-theft locking devices (mechanical locks/smart electronic locks) to prevent cover theft; ②Anti-fall nets/brackets (load-bearing ≥1000kg) to avoid personnel falling. Accessories can be integrated into the product as needed.

Q: 5.Can non-standard sizes or special-shaped recessed covers be customized?

A: Customization is supported. The regular customizable range includes: ①Circular diameter 500-1200mm, square/rectangular side length 400-1000mm; ②Special shapes (elliptical/irregular) can be produced according to drawings, but the customization cycle is 7-15 days longer than standard models, and small-batch customization will incur certain mold costs
