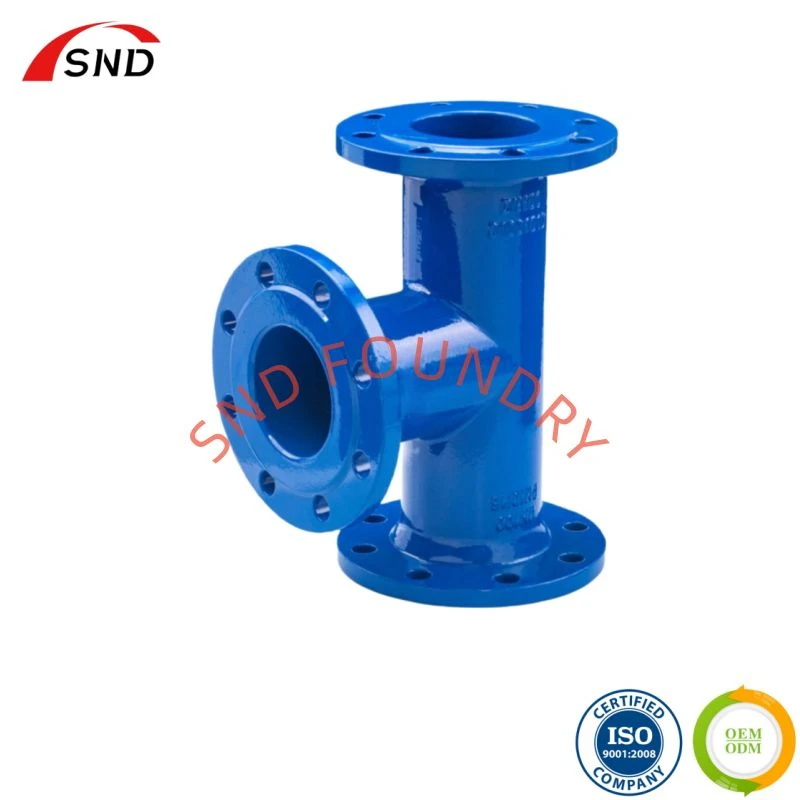

Ductile Iron All Flanged Tee Pipe Fittings

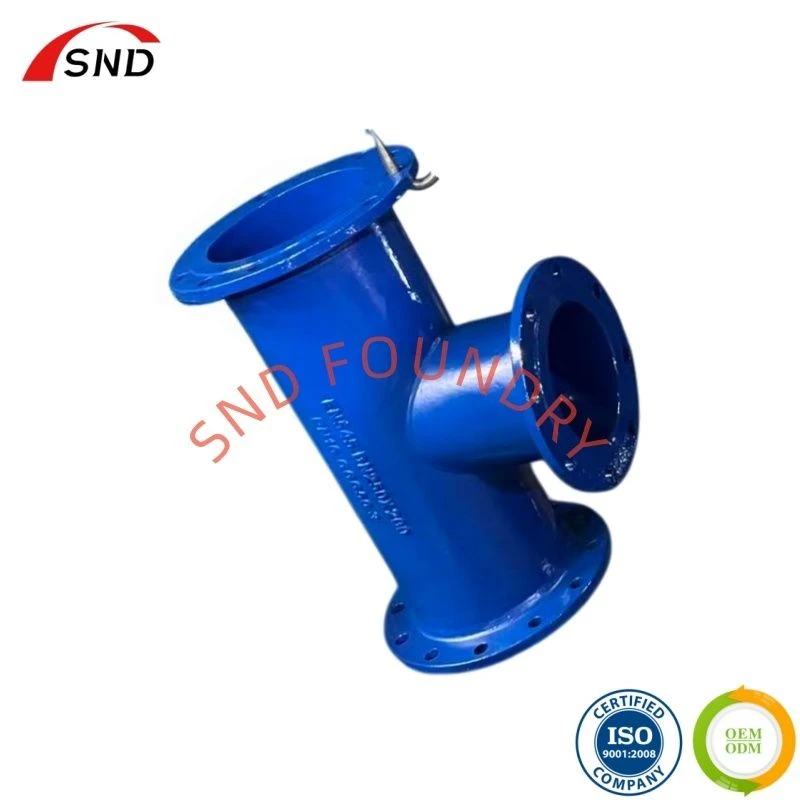

Ductile iron All flanged tee pipe fittings, a pipe splitting/combining fitting with integrated filtration function. Material: GG50 + blue epoxy resin anti-corrosion coating, providing corrosion resistance and wear resistance; Structure: Y-type tee structure, all three ports are equipped with equal-diameter flanges (for easy bolt connection), and an internal filter screen is built in (hidden within the Y-shaped cavity); The Ductile iron All flanged tee pipe fittings simultaneously performs both pipe branching/combining and media impurity filtration, replacing the combination of a "standard tee + separate filter".

1. Municipal water supply: Branch filtration of urban tap water pipelines;
2. Industrial fluids: Medium transportation pipelines in chemical and power systems (such as cooling water pipes and raw material pipelines);
3. HVAC systems: Diversion filtration of central air conditioning and heating pipelines;
4. Equipment front-end: Inlet pipelines of precision equipment such as pumps and valves (protecting equipment from damage caused by impurities).

1. Regularly (every 1-3 months) close the upstream and downstream valves, remove the side flange to take out the filter screen, clean out any impurities, and then reassemble;
2. If the coating is damaged, promptly reapply anti-corrosion paint to prevent the base material from rusting;
3. During installation, pay attention to the direction of media flow (it must enter from the main pipe and exit from the filter screen side); reverse installation will render it ineffective.
